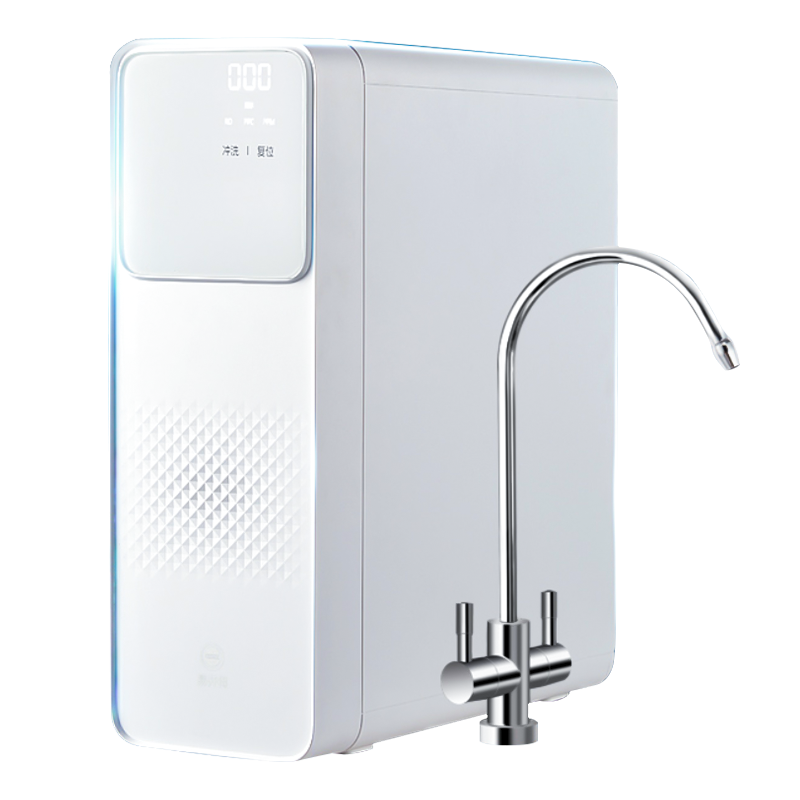

AW-RG02R Series Three-temperature adjustable instant hot Under Sink Water Purifier

AW-RG02R Series Three-temperature adjustable instant hot Under Sink Water Purifier

AW-RG02R

Filtration system

5-stage composite filter cartridge (ACF+RO+C)

Flow Rate

1.56L/min (purified cold water)

≥0.75L/min (purified 60℃ hot water);

≥0.50L/min (purified 45℃ hot water);

Features

Instant hot water available in seconds

Smart faucet with filter life display and hot

water temperature selection

Hassle-free 3-second filter replacement

Dry-burning prevention design

Multifunctional touch panel faucet customizable

Empty stale water by just one press of a button

Pasteurization sterilization

PREV: AW-RG04R Series Five-stage composite filter element Under Sink Water Purifier NEXT:Undersink Instant Hot RO Water System

Features of RO Instant Hot Water Dispenser System

High precision RO purification and instant access to hot water

Our RO instant hot water dispenser system is equipped with a five-stage filtration cartridge (ACF+RO+C) and a UV sterilizer, which can remove odors and eliminate bacteria, viruses and heavy minerals in water, with filtration precision of 0.0001um. In addition, we have placed the post-position carbon block in the water filter system that can add minerals essential to people’s health in the water with better taste. The UV sterilizer inside guarantees zero bacteria and virus in your drinking water. Besides, our RO instant hot water dispenser system has a heating device that preserves enough hot water available at any time of a day. Three levels of water temperature 23℃, 45℃ and 60℃can be selected by simply pressing the buttons on smart display faucet. Fresh and great tasting water for drinking, cooking and making coffee and tea is ready in the tank.

● Specially-designed integrated water circuit effectively prevents water leakage

● Fast-flow, fresh and great tasting water for drinking, cooking and making delicious coffee, tea

● Quiet operation with noise level of less than 40dB

● Small size of the instant hot water dispenser system saves space in your kitchen

● Real-time monitoring of water TDS, which can be read via smart display faucet

● Filter lifetime reminding function, with easy filter replacement

PARAMETERS

RO flow available	400~800GDP
Purified/drain ratio	2:1
Power	2200W 1650W
Voltage	AC 220V/50Hz\| AC 110V/60Hz
Purifed water flow rate	1.56L/min(for600GPDambientwater)/2.08L/min(for 800GPD ambient water)
Hot water dispensing flow (≥ 90℃)	≥750ml/min(for water storage tank @60℃) ≥500ml/min(for water storage tank @45℃)
Filtration stages	5
Filter service life	5in1compositefltercartridge(ACF+RO+C)/12~18 months
Min inlet water pressure(MPa)	0.1
Max inlet water pressure(MPa)	0.4
Inlet water quality	Municipal water
Inlet water temperature	5~38℃
Working temperature	4~40℃(ambient)

1.The above data are the results obtained by our laboratory.

2.Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.

Features of RO Instant Hot Water Dispenser System

Water Filter System Installation and Filter Cartridge Replacement

● Simple installation of under sink water filter system, DIY installation is possible

● Real-time monitoring of filter cartridge lifetime

● Easy replacement of filtration cartridge

1. Place the water filter system horizontally and steadily

2. Press the button for filter replacement and remove the expired filter, and push the new filter into the system

3. Press the "Reset" button for resetting and flushing of the filter cartridge

● Our eco-friendly RO water filter system could help reduce the consumption of bottled water, thus saving your money and protecting the environment from plastic waste

Accessories drawing
