Home / Product / Counter Top Water Purifier / Counter Top Instant Heating RO Purifier / AW-RF05R-75 Series Integrated leak-proof desktop water purifier

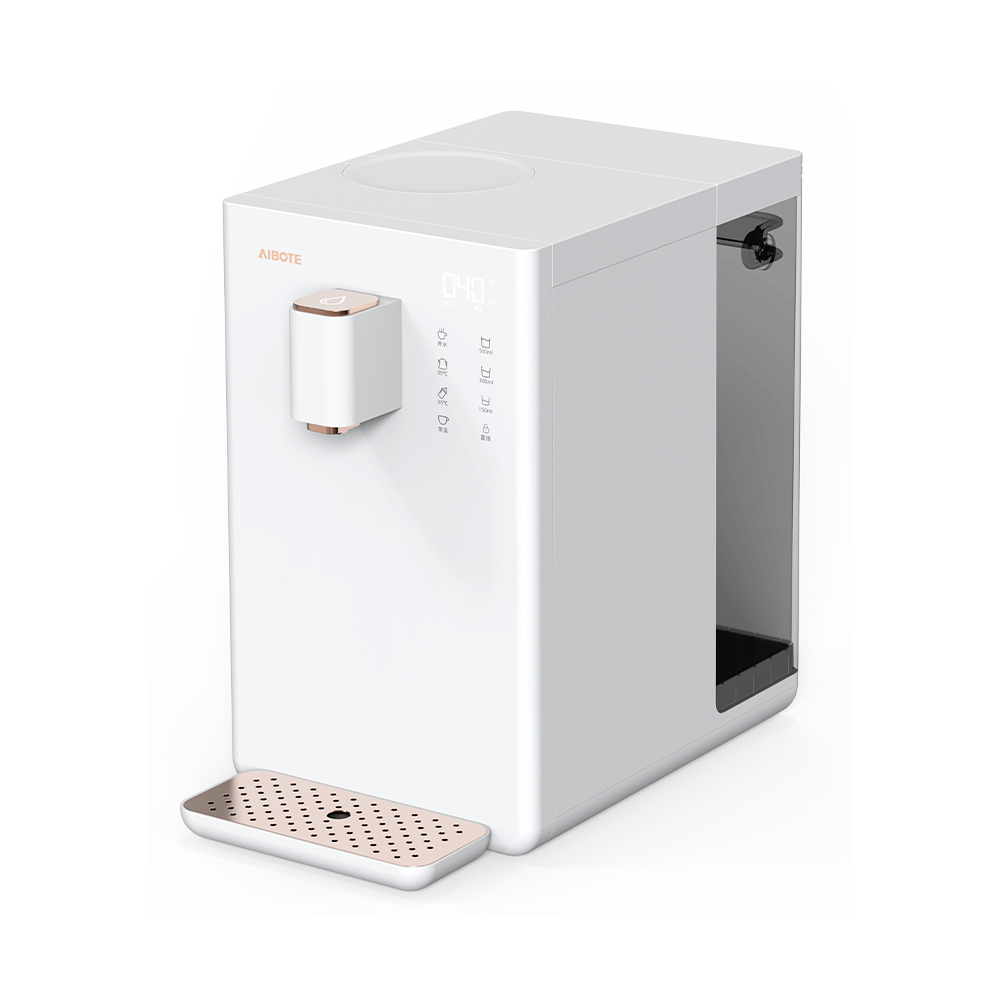

AW-RF05R-75 Series Integrated leak-proof desktop water purifier
AW-RF05R-75 Series Integrated leak-proof desktop water purifier

AW-RF05R-75 Series Integrated leak-proof desktop water purifier

AW-RF05R-75

Filtration system

PP+CTO+RO composite filter

Flow Rate

≥11.7L/H (purified cold water)

≥24L/H (purified hot water)

Features

Multiple water temperature selection(45°C/85°℃/100°℃)

Two water volume selection(150ml/300ml)

Filter lifetime display, safety lock

Hassle-free 3-second filter replacement

Automatic UVself-cleanin

Dry-burning prevention design

Multifunctional touch panel customizable

Extra kettle configuration facilitating your flexible water drinking demand

Features of Countertop Instant Hot RO System

Advanced Filter, Excellent Filtering Performance

Aibote’s countertop instant hot RO water system is equipped with a composite filter cartridge (PP+CTO+RO). The three filters are integrated into one cartridge. The filter is able to keep out al all pollutants and contaminants as small as 0.0001 micron, including bad odor, unusual color, bacteria, viruses and heavy metal ions.

Integrated water circuit to prevent water leakage;

The countertop instant hot RO water system can deliver boiled water within 3 seconds;

Dry-burning prevention design;

Noise-reduction, noise smaller than 40 dB;

No overnight water, activate flushing with one button;

The countertop instant hot RO water system is equipped with filter lifetime indicator;

Easy change of filter cartridge with only one button;

Child safety lock to prevent burns;


Two water tanks, enough water supply

Aibote’s countertop instant hot RO water system has two water tanks, a 4L tap water tank and a 0.8 L purified water tank, to meet your daily demands. The RO water system has a smart exterior design. It can also be placed in different places in your house for ready availability of water.


Different temperature options, meet different demands

Aibote’s countertop instant hot RO water system can deliver water at four options of water temperature to meet your various demands. Specifically, the RO water system can heat water at 25℃ for drinking, 45℃ for milk-steaming, 85℃ for coffee and tea, and 90℃ for beverage-making in electric glass kettle

PARAMETERS

Model

Products with feed water tank

Rated purifed water flow

≥11.7L/h(RO Permeate Producing)

Hot water dispensing flow

≥24L/h

Power

2100W /1650W

Voltage

AC 220V/50Hz  AC110V/60Hz

Filtration system stages

3

First filter/service life

Composite filter:PP+CTO+RO/18months

Second filter/service life

/

Feed water tank

4.0L/5.0L

Purified water tank

0.8L

Purified water CUP

/

Input water pressure(Mpa)

/

Inlet water quality

Municipal water

Inlet water temperature

5~38℃

Working environment temp.

4~40℃(indoor)

1.The above data are the results obtained by our laboratory.

2.Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.

Water Filter System Installation and Filter Cartridge Replacement
No need to install water pipes, allowing for placing freely
Filter lifetime indicator
Easy change of filter cartridge
Our countertop RO instant hot water dispenser system could help reduce the consumption of bottled water, thus saving your money and protecting the environment from plastic waste.

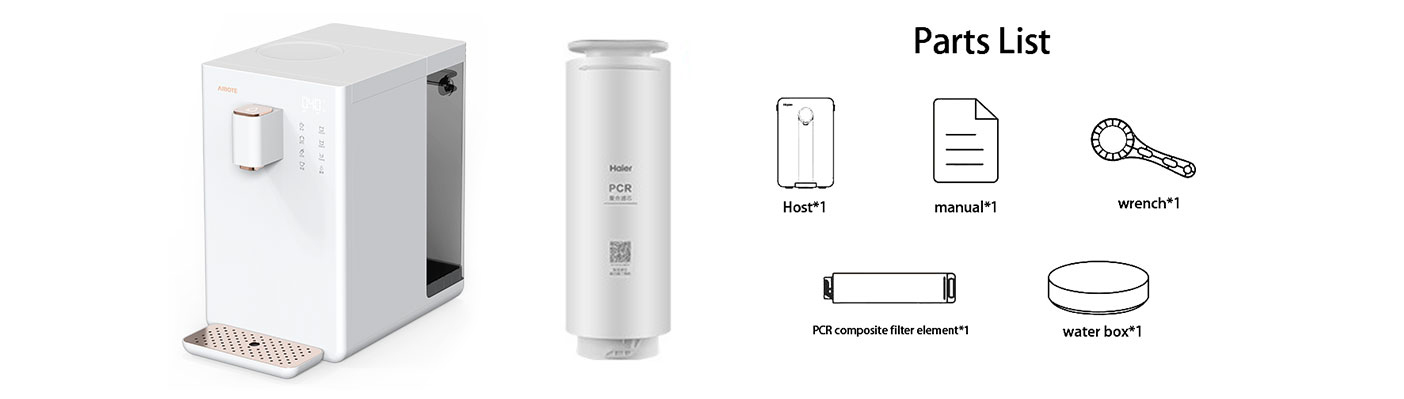

Accessories drawing
